QUALIDUTOS

QUALIDUTOS MODULE DESCRIPTION

Qualidutos was developed to store and control construction, assembly, testing, conditioning, Quality inspection records and acceptance of onshore pipelinesand electromechanical works.

It is acceding to the standards API1104, ASME B31.11, N-464, NBR15280 and others. It works via an internet navigator dismissing any need to install other additional programs.

Qualidutos is a robust and high performance program but with an intuitive and friendlyinterface. With it you can:

1. Control the materials received and generate the balance of losses, leftovers and applications of materials.

2. View quick information about the status of each record issued by the enterprise.

3. Use the Welders Performance to perform monitoring, adhering to PETROBRAS standard N-2301, N-133 and N-464.

4. Minimize paper handling. All reports can be accessed electronically.

5. Control and track documentation for each of the pipes used in the enterprise.

SCREENS

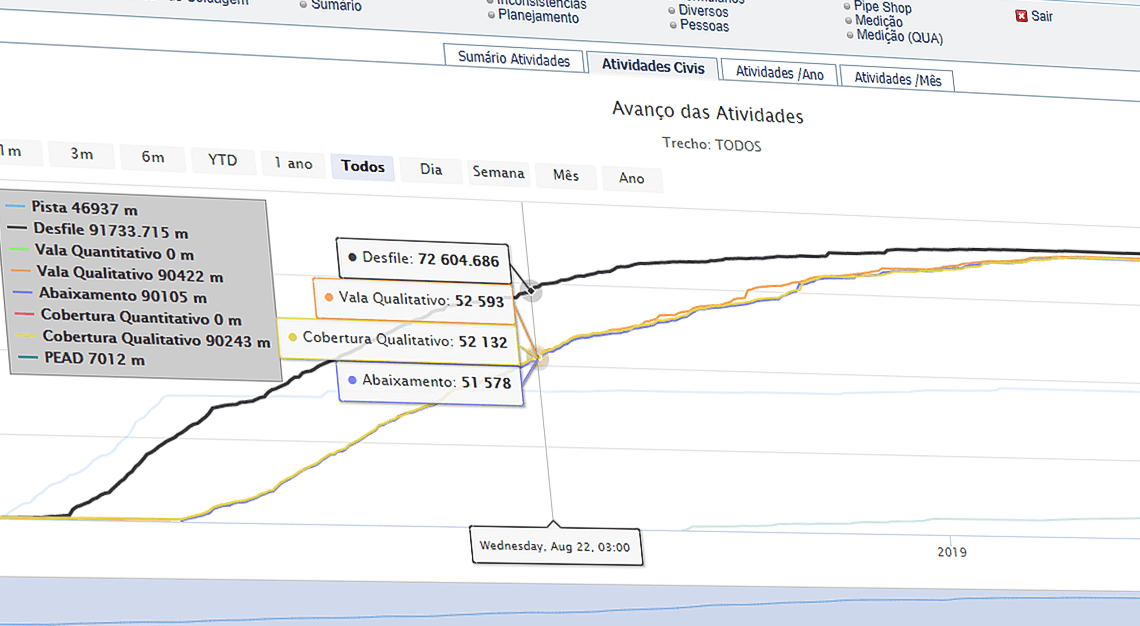

  • Inspection progress screen with a line chart of activity progress

    Advance of realized inspections

    Automatically generated based on reports’ information.

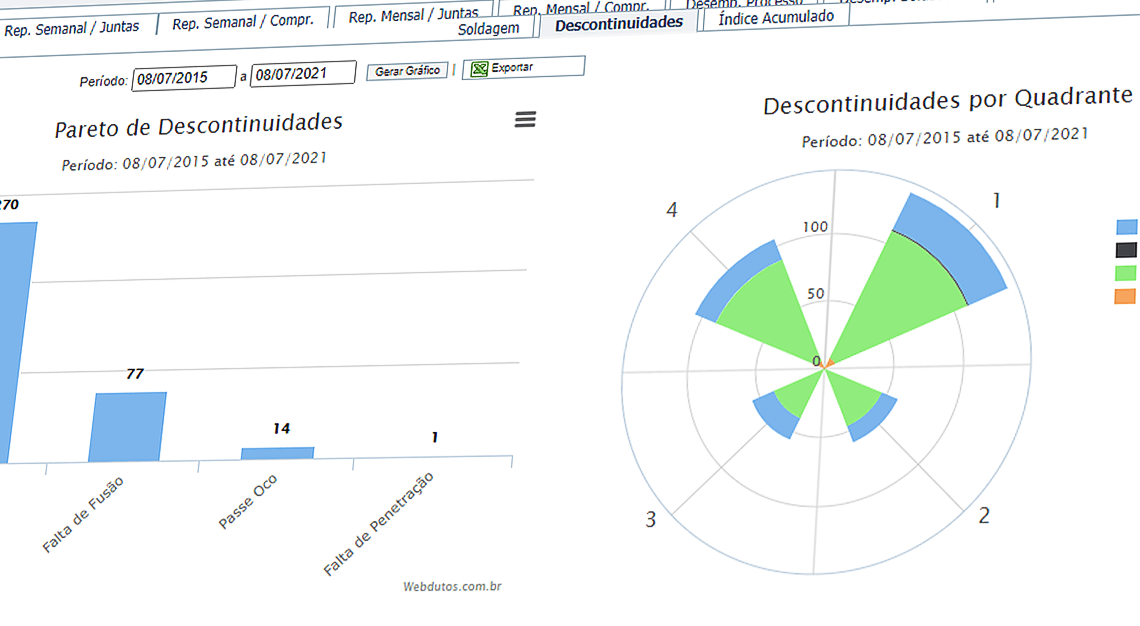

  • Discontinuity location screen with Pareto charts of discontinuities and discontinuities by quadrant

    Discontinuities Lease

    Distribution of weld discontinuities per quadrant.

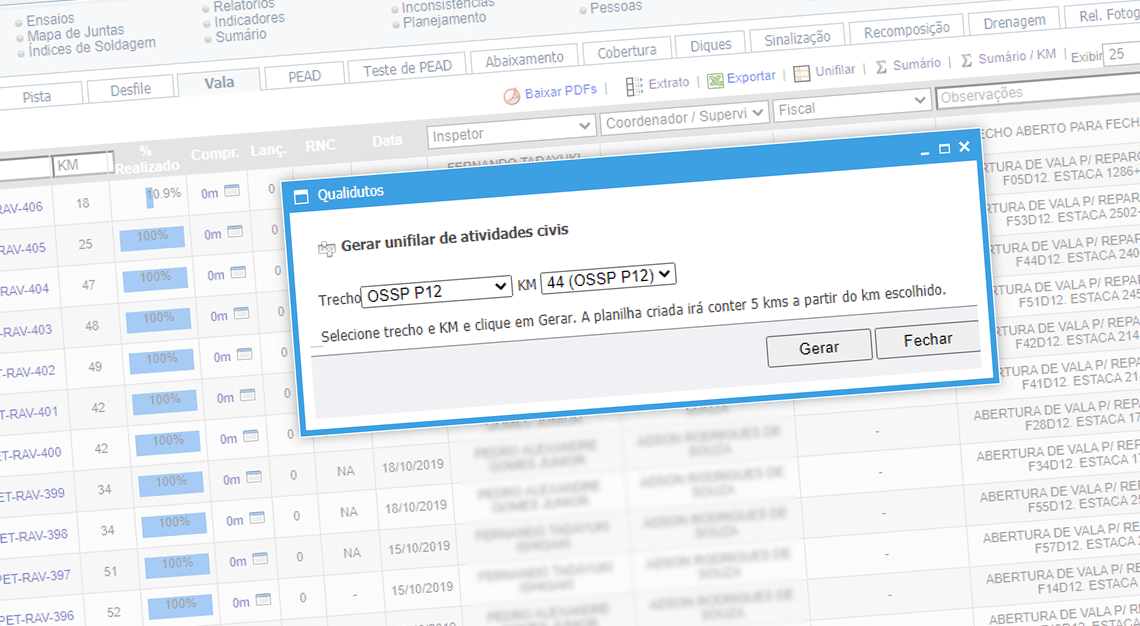

  • Civil activities screen showing how to generate a single-line diagram of civil activities

    Civil Activities

    Registers of inspection on trench opening.

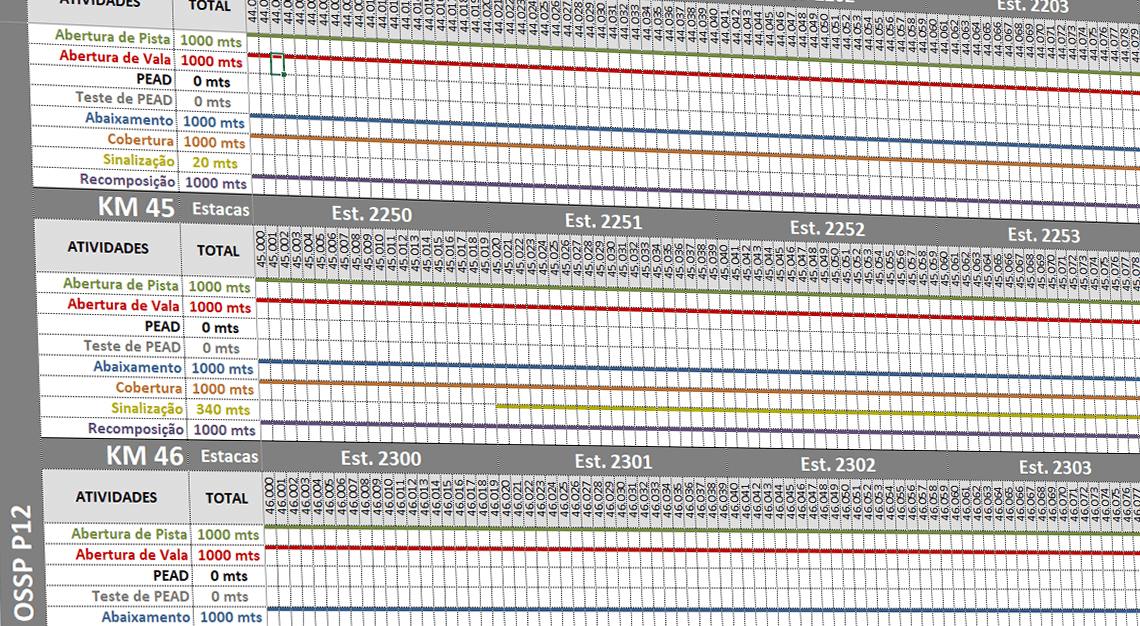

  • Single-line diagram

    Single-line diagram

    Exported to Excel with 5 to 10 of measuring precision.

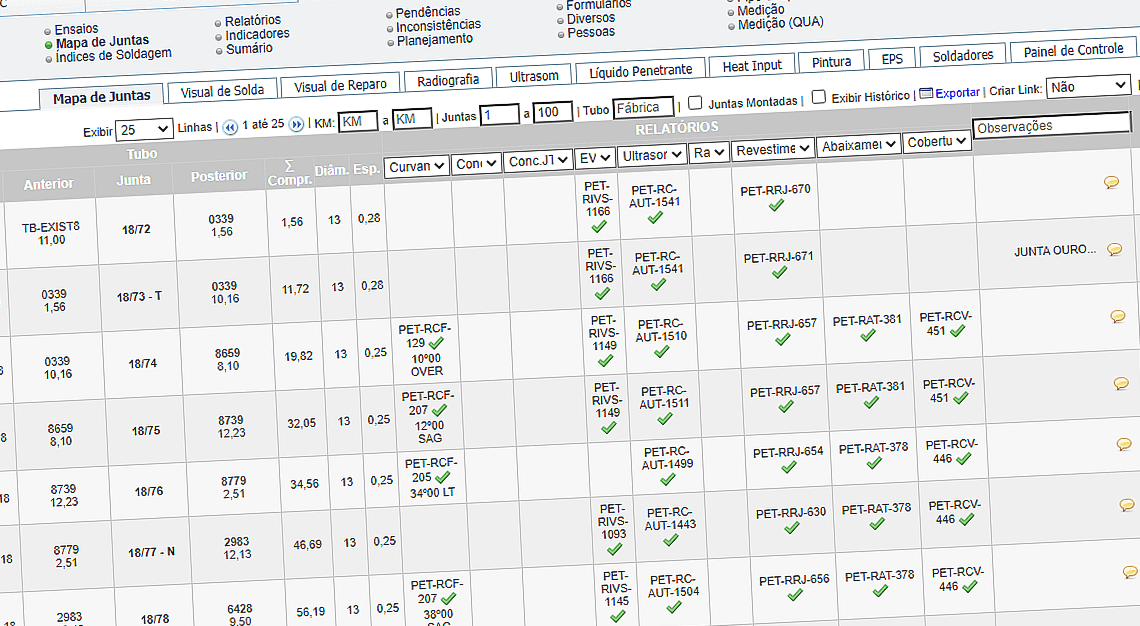

  • Diagram showing the Qualidutos weld joint map

    Weld joint map

    Quick and easy access to the information of all assembly processes. Also allows access to digitalized registers.

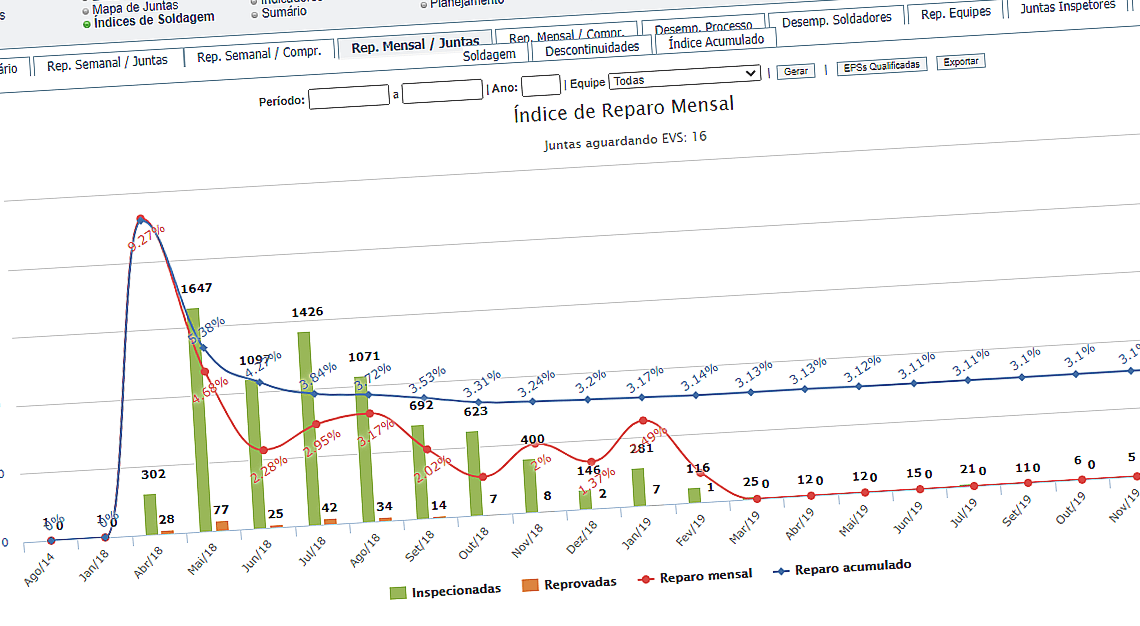

  • Welding performance screen with a monthly repair rate chart

    Weld Performance

    Graphic indicator about the weld process generated based on registers of non-destructive tests.

DIFFERENTIALS

  • Processes Workflow

    Over 50 different inspections covering receiving, personal qualification, processes, civil activities, weld, ENDs, delivering hangs, etc.

  • Consistence

    All the fields on the form are pre-registered on the database and the verifications are done during the typing.

  • Indicators

    There are over 50 indicators and reports generated automatically such as weld performance and welders, joints map, assembly hangs, physical advance, Data book consistence, Single Line Diagrams and Open Spots, etc.

  • Control

    All the screens are interconnected, allowing trace all the information related to any spot of the construction.

  • Interactivity

    Totally compatible with electronic files such as PDF, Excel, images and videos.

FREQUENTLY ASKED QUESTIONS

How is the access to Webdutos' softwares?

All Webdutos’ softwares can be accessed via an internet navigator (Google Chrome, Firefox, Safari or Internet Explorer) or any other preferred by the user. There is no need to install any additional programs to use our softwares.

Can I use Webdutos' softwares via internet?

Yes. All Webdutos' programs can be used on internet as well as on the internal network of the enterprise. That way, they work normally when there is no internet link.

Is there an integration between the softwares?

All Webdutos’ modules chat with each other through the integrated database. The inserted information on a module go through internal consistencies once they are distributed and then integrate sectors such as Planning -> Engineering -> Production -> Quality.

Is it necessary to install additional programs to use the modules?

No. The only necessary thing is a internet navigator.

Is there any additional cost for customizing WEBDUTOS modules?

There are no additional costs to incorporate new features requested. Our work philosophy recognizes the need to meet the specific needs of each enterprise in order to evolve our programs. Therefore, requests for improvements and new features are welcome!

Is possible to integrate WEBDUTOS' softwares with others programs we have used before?

We look forward to make that integration in order to avoid reworks and retyping data. There are various cases of succeeded integration with softwares such as Dutoline, Autocad, Citadon, Project, and others; but every case needs to be analysed to ensure the consistence of the information.

How does WEBDUTOS support work?
several

Users can open support tickets by email any day of the week, at any hour. For tickets by phone or Teams, support is available during business hours, Monday to Friday from 9 am to 6 pm.

Is a high performance hardware necessary to use WEBDUTOS' softwares?

The technology used requires only low-end hardware. Even older servers, more than 5 years old, can be used normally, and a workstation with more than 3 years of use can be turned into the application server.
